In residential, commercial, and electrical engineering settings, wall switches are extremely common yet easily overlooked electrical control devices. Besides ordinary 10A or 16A switches, a larger type of switch—the 20A DP wall switch—is often seen on high-load electrical circuits.
Due to its higher rated current, safer structure, and more reliable control method, it is widely used for appliances requiring stable power outages or double-pole isolation.
So, what is a 20A DP wall switch used for?
Why can it withstand 20A of current?
What is its special significance compared to ordinary switches?
Which devices require it?
This article will comprehensively analyze the function, uses, technical characteristics, and suitable application scenarios of the 20A DP wall switch from an electrical engineering perspective, allowing you to fully understand its role.

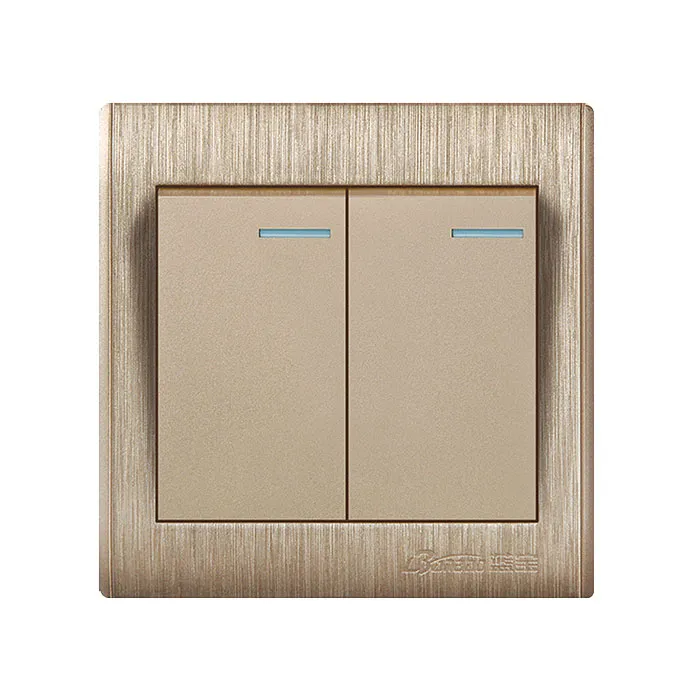

What is a 20A DP wall switch?
Meaning of 20A
"20A" indicates that the switch can safely carry a maximum current of 20 amps. In an AC 220V environment, the maximum power of the appliances it can control is approximately:
P = 220V × 20A = 4400W
In other words, a 20A DP wall switch is a wall switch specifically designed for controlling high-power appliances.
Meaning of DP: Double Pole
DP stands for double-pole control, meaning:
• Simultaneously controls the live wire (L) and neutral wire (N)
• Achieves double isolation when in the off state
• Belongs to a higher level of isolation
This structure is typically used for:
• Higher power
• Higher safety requirements
• Appliances requiring complete circuit disconnection
• Or appliances where the risk of residual current needs to be avoided.
Therefore: A 20A DP wall switch is a high-load, high-safety-level double-pole isolating switch.
Why Use a 20A DP Wall Switch?
In electrical engineering, low-current switches (such as 10A/16A) are used for lighting equipment, while high-load appliances require higher current and safer double-pole isolation control.
The 20A DP wall switch was developed to meet the following needs:
1. Controlling high-power appliances (greater than 3000W)
Ordinary switches have limited load capacity, while 20A DP wall switches have a stronger load capacity, generate less heat, and have a longer lifespan.
2. Providing higher electrical isolation safety
By simultaneously disconnecting the live and neutral wires when the switch is off, it avoids:
• Risk of leakage
• Residual liveness inside the appliance
• Risk of electric shock
This is especially important in high-humidity environments such as bathrooms and kitchens.
3. Avoiding the risks that may result from disconnecting only the live wire
If only the live wire is disconnected but the neutral wire remains connected, the appliance may still be energized, which is detrimental to safety maintenance. DP switches completely solve this problem.
4. Meets National and International Electrical Standards
Some electrical appliances (such as stationary electric heaters) require the use of double-pole disconnect switches, and the 20A DP wall switch is a product that meets this standard.
What is the rated load of a 20A DP wall switch?
Many consumers are concerned about the power capacity of a 20A DP wall switch.
In a 220V environment:
Maximum applicable power ≈ 4400W
However, to ensure a safety factor, engineering designs typically use loads below 80% of this capacity.
Therefore, the 20A DP wall switch is more suitable for:
• Equipment above 2800W~3500W
• High-power appliances requiring double-pole isolation
Which high-power electric heating devices are suitable for the 20A DP wall switch?
Electric heating equipment, due to its high current and heat generation, is ideally suited for 20A DP wall switches, such as:
• Fixed electric heaters
• Electric radiators
• Small storage water heaters
• Some bathroom heating systems
• Some washing machine heating functions
These devices have high power consumption and long operating hours, requiring high-specification wall switches to ensure continuous safety.
Can 20A DP wall switches be used for high-power kitchen appliances?
Absolutely. Many kitchen appliances are high-load, long-term operating devices, such as:
• High-power range hoods
• High-power electric ovens (built-in)
• Large induction cookers (fixed installation)
• Built-in microwave ovens
• Kitchen heating equipment
These appliances have high power consumption, and ordinary 10A or 16A switches are far from sufficient for long-term operation. The double-pole disconnect function of a 20A DP wall switch further enhances safety.
Is a 20A DP wall switch suitable for bathroom appliances?
Many bathroom appliances are not only high-powered but also pose safety risks due to the humid environment. Therefore, a 20A DP wall switch is strongly recommended for the following common devices:
• Bathroom heaters
• High-power bathroom heater modules
• Moisture-proof electric heating devices
• Small storage water heaters
Especially for bathroom heaters and fan heaters, whose power often exceeds 2000W, even approaching 3000W, using a 20A DP wall switch can significantly improve safety.
Is a 20A DP wall switch suitable for controlling air conditioners?
For some medium-sized air conditioners (such as 1HP and 1.5HP models), their operating current is usually around 6A-12A, and a dedicated socket or circuit breaker is generally sufficient.
However, a 20A DP wall switch is suitable for the following situations:
• Large, fixed-installation air conditioners
• Wall-mounted units with slightly higher power
• Air conditioner circuits requiring manual power disconnection and isolation
• Equipment that cannot be controlled by a socket and needs to be controlled by a wall switch
The DP structure avoids the potential for "pseudo-power-off" states within the air conditioner, making it more suitable for long-term use.
What is the difference between a 20A DP wall switch and a 20A SP wall switch?
Many people are familiar with SP switches (Single Pole), but they are very different from DP switches.
SP (Single Pole): Only disconnects the live wire
• Neutral wire remains connected
• Some parts inside the appliance may still be energized
• Not suitable for equipment that requires complete isolation
DP (Double Pole): Disconnects both the live and neutral wires
• Completely isolates the circuit
• Completely disconnects power to the appliance
• Higher safety level
Therefore, for high-load appliances, a 20A DP wall switch should be the preferred choice.
Why is a 20A DP wall switch safer?
20A DP wall switches are superior not only because of their high current capacity but also because of their enhanced safety structure:
1. Prevents leakage risk
Simultaneous power disconnection on both poles ensures the appliance is no longer energized.
2. Prevents accidental electric shock
Even if the device has an internal fault, there will be no hazard due to a live neutral wire.
3. Improves maintenance safety
Disconnecting the DP switch before appliance maintenance ensures complete power disconnection.
4. Prevents electric shock risk in humid environments
DP switches are strongly recommended by safety regulations in environments such as bathrooms and kitchens.
What are the internal structural features of a 20A DP wall switch?
Compared to ordinary wall switches, the 20A DP wall switch has a significantly stronger design:
1. Thicker copper sheets
To withstand greater current and heat.
2. Larger contact structure
Enhanced arc resistance and reduced losses.
3. High flame-retardant material casing
Improved high-temperature resistance.
4. Stronger terminal blocks
Suitable for 2.5mm²–4mm² wires.
5. Double-pole linkage mechanism
Ensuring the live and neutral wires disconnect or connect simultaneously.
These advantages make the 20A DP wall switch more suitable for high-load applications.
What wire gauge should a 20A DP wall switch be used with?
Generally:
• 2.5mm² copper wire is suitable for loads below 16A
• 4mm² copper wire is suitable for 20A loads
Therefore, 20A DP wall switches are mostly used with 4mm² wires.
Can a 20A DP wall switch replace a regular switch?
The answer is: Yes, but it is not recommended.
While 20A DP wall switches offer greater functionality, their use in general lighting scenarios, such as with standard LED lights, presents several drawbacks:
• High cost
• Large switch size
• Incompatible tactile feedback for lighting control
Therefore: 10A or 16A switches are more suitable for lighting; 20A DP switches are more appropriate for high-power devices.
What are 20A DP wall switches actually used for?
20A DP wall switches are primarily used for:
• High-power electric heating equipment (water heaters, space heaters, etc.)
• High-load kitchen equipment (ovens, induction cookers, etc.)
• High-power bathroom equipment
• Appliances requiring double-pole isolation
• Large, fixed-installation appliances
Its advantages include:
• Capable of handling 20A of current
• Utilizes a double-pole isolation (DP) structure
• Completely cuts off power
• A safety level far exceeding that of ordinary switches
Therefore, 20A DP wall switches are the best choice for all devices requiring high-load control and complete power isolation.
